plotequilibrium¶

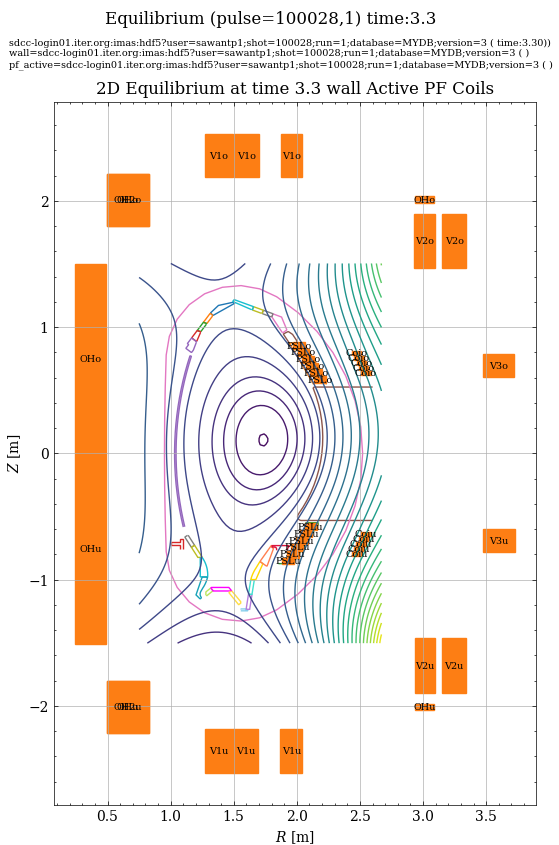

plotequilibrium script shows plasma equilibrium. Optionally it also shows PF coil positions and a toroidal-flux contour overlay. refer data dictionary.

--phi overlays contours of the toroidal magnetic flux Φ(R,Z) [Wb] read directly from equilibrium/time_slice/profiles_2d/phi:

\[\Phi(R,Z) \quad [\mathrm{Wb}]\]

Syntax plotequilibrium¶

$ plotequilibrium -h
Usage: plotequilibrium [-h] -u URI [--dd-update] [--rc RC] [--no-provenance]
                       [-t TIME] [--phi] [--no-overlay] [--profiles]
                       [-md [MD ...]] [--debug] [--save]
                       [--directory DIRECTORY]

---- Display the plasma equilibrium from the equilibrium IDS. It also shows pf
coils and wall position overlay if exists [Previously known as equiplot]

Options:
  -h, --help            show this help message and exit
  -u, --uri URI         URI of the dataentry (e.g, imas:hdf5?path=./testdb or
                        ./testpulse.nc)
  --dd-update           Convert IDS to the default version of the data
                        dictionary if enabledotherwise, use the original IDS
                        stored on disk.
  --rc RC               Semicolon-separated rcParams string (e.g.,
                        'lines.linewidth=2;axes.titlesize=14')
  --no-provenance       Hide URI provenance information from plot titles
  -t, --time TIME       Time (default=middle)
  --phi                 Overlay contours of toroidal magnetic flux Φ(R,Z) [Wb]
                        from equilibrium profiles_2d/phi
  --no-overlay          Hide equilibrium overlays
  --profiles            Plot available 1D profiles and time traces alongside
                        the equilibrium
  -md, --md [MD ...]    Provide machine descriptions that you need to plot
                        with ids names for example wall pf_active or with uris
                        for example
                        "imas:mdsplus?user=public;shot=116000;run=4;database=I
                        TER_MD;version=3#wall",
                        "imas:mdsplus?user=public;shot=116000;run=4;database=I
                        TER_MD;version=3", "imas:hdf5?path=./testdb",
                        "testpulse.nc"
  --debug               Show diagnostic logging
  --save                Save figure at default location
  --directory DIRECTORY
                        Directory to save the figure

Example plotequilibrium¶

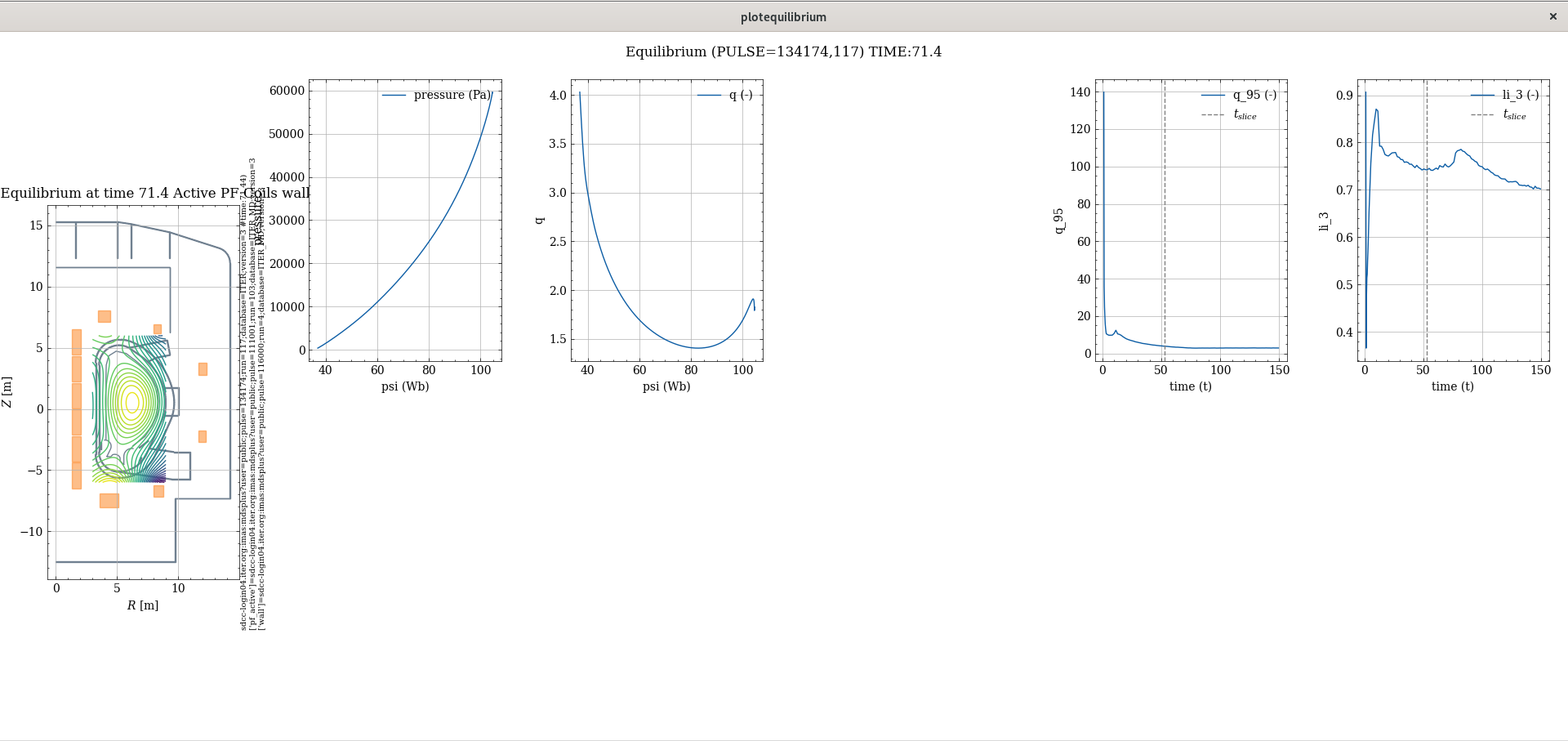

$ plotequilibrium --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3" --phi -md pf_active wall --profiles
$ plotequilibrium --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3" --phi -md "imas:mdsplus?user=public;pulse=111001;run=103;database=ITER_MD;version=3#pf_active" "imas:mdsplus?user=public;pulse=116000;run=4;database=ITER_MD;version=3#wall"

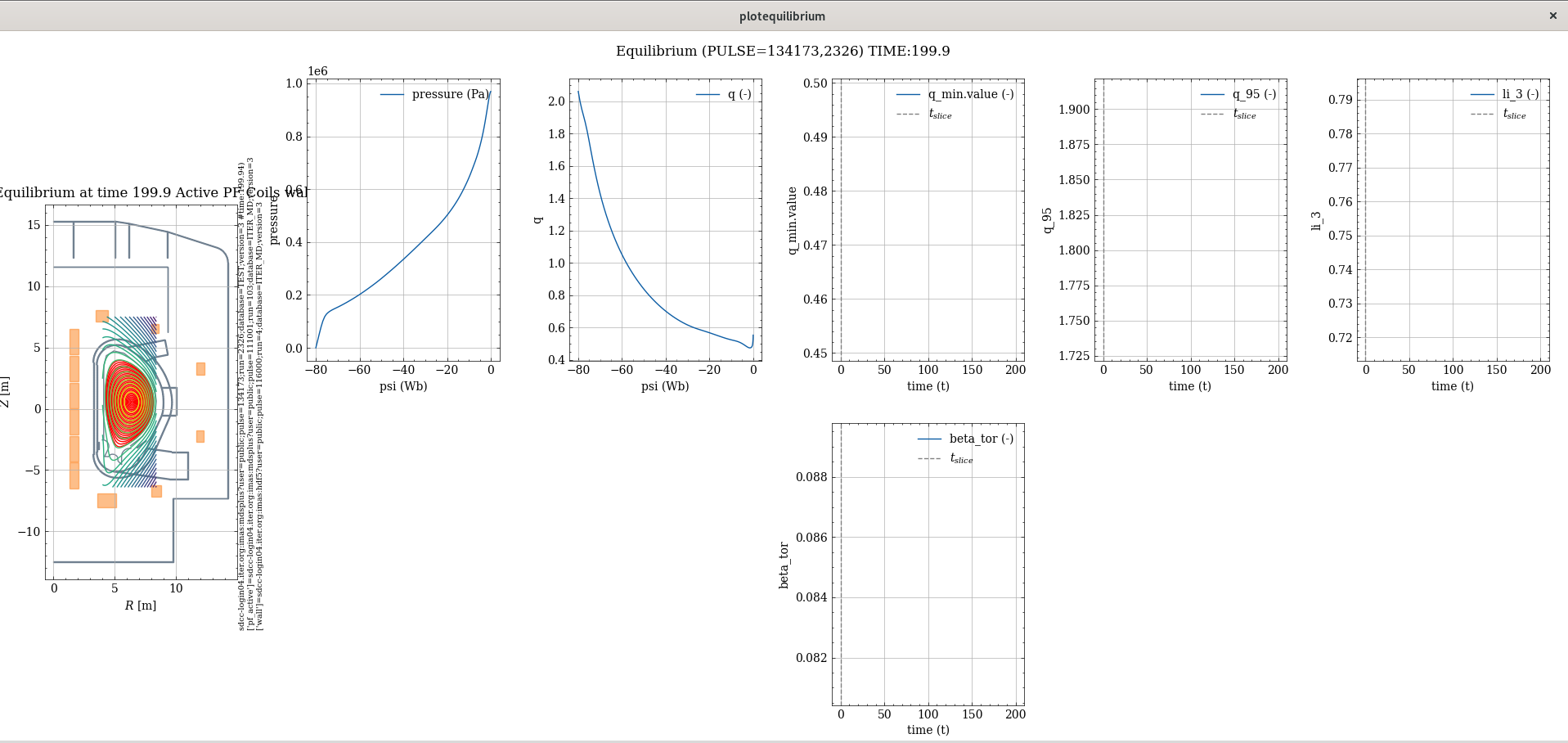

$ plotequilibrium --uri "imas:mdsplus?user=public;pulse=134173;run=2326;database=TEST;version=3" --phi --md "imas:mdsplus?user=public;pulse=111001;run=103;database=ITER_MD;version=3#pf_active" "imas:hdf5?user=public;pulse=116000;run=4;database=ITER_MD;version=3#wall"
$ plotequilibrium --uri "imas:hdf5?path=/work/imas/shared/imasdb/ITER/3/100507/5" --md "imas:hdf5?path=/work/imas/shared/imasdb/ITER_MD/3/116000/5#wall" --profiles --no-provenance
