idsdiff¶

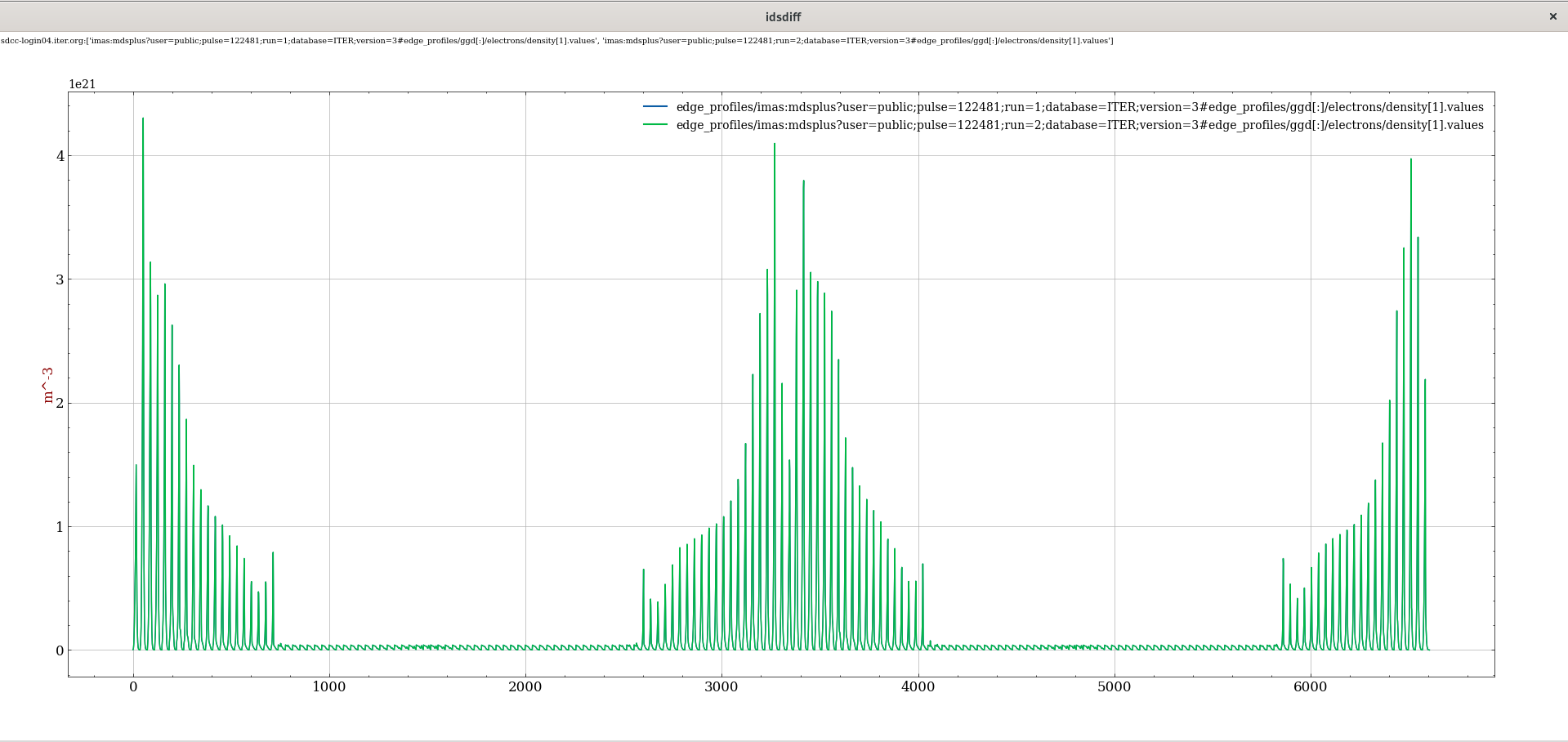

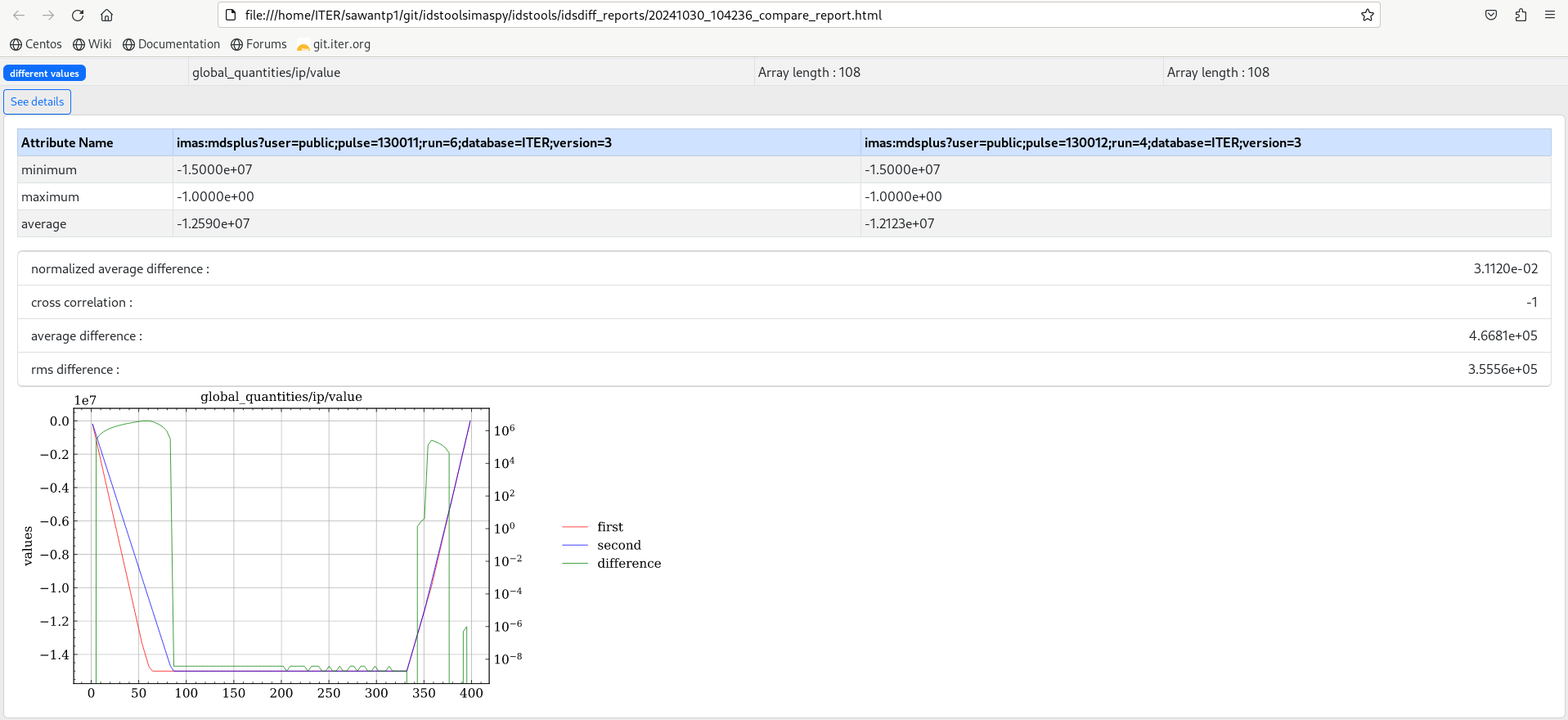

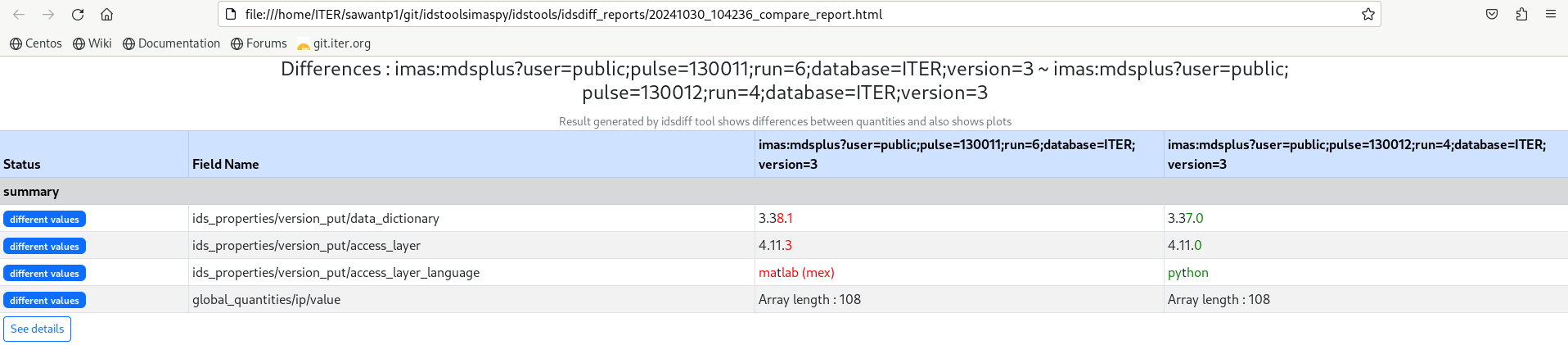

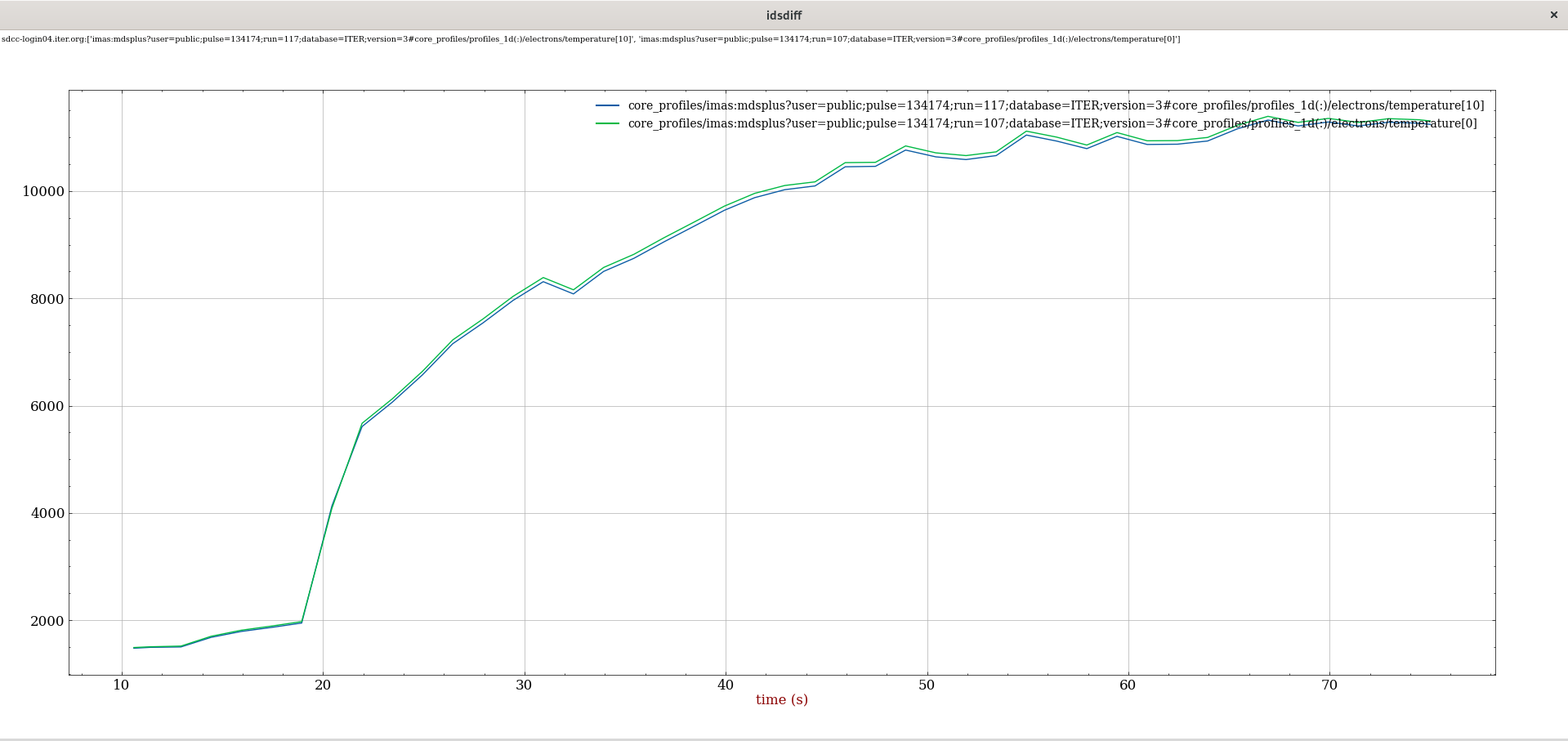

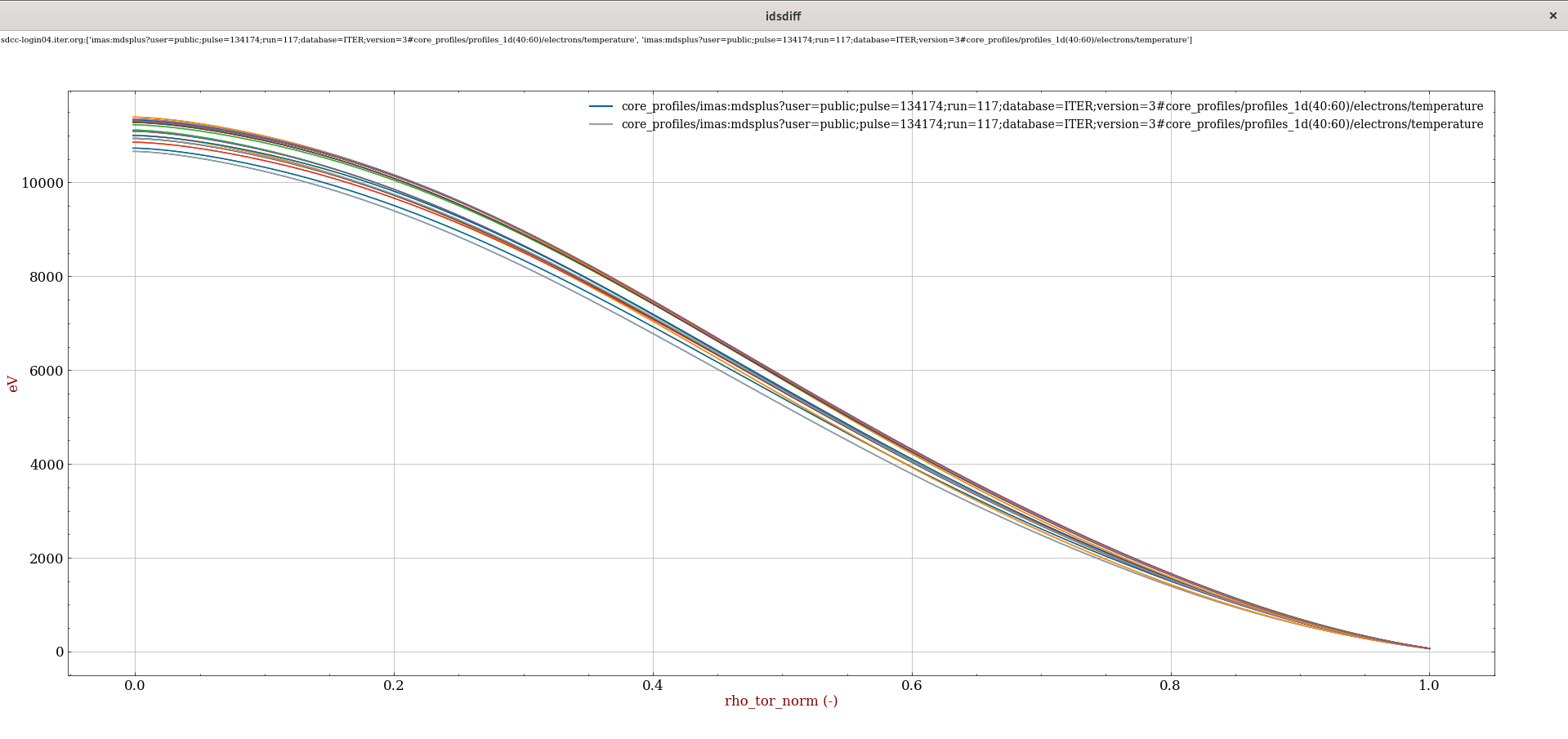

idsdiff script shows ids level differences between two runs. It stores result in html document. For signals differences it is also shown as graph.
Syntax idsdiff¶
$ idsdiff -h Usage: idsdiff -h --- Compare a IDS from multiple date entries and returns True or False with option of generating html page with comparison - Example: idsdiff --uri "imas:mdsplus?user=public;shot=122525;run=1;database=ITER;version=3#summary" "imas:mdsplus?user=public;shot=122525;run=2;database=ITER;version=3#summary" Options: -h, --help show this help message and exit --rc RC Semicolon-separated rcParams string (e.g., 'lines.linewidth=2;axes.titlesize=14') -u, --uri [URI ...] uri separated by spaces (e.g. "imas:hdf5?path=./testdb" "./testpulse.nc") -t, --time TIME Time -m, --slicingmethod {CLOSEST,PREVIOUS,LINEAR} Slicing method (default=CLOSEST) --skip-provenance Discards provenance data differences (optional) -p, --plot if idspath is given in the URI fragment with this option you can plot the data also add plots in html page if used along with -html -html, --html Generate html page for showing difference, it can also includes plots if -p option is enabled -f, --fullarray Show full time array values --save Save figure at default location --directory DIRECTORY Specifies directory where report should be stored
Example idsdiff¶
# Compare with specific idses using --ids option $ idsdiff --uri "imas:mdsplus?user=public;pulse=122525;run=1;database=ITER;version=3#summary" "imas:mdsplus?user=public;pulse=122525;run=2;database=ITER;version=3#summary" First: imas:mdsplus?user=public;pulse=122525;run=1;database=ITER;version=3 (summary) - Second: imas:mdsplus?user=public;pulse=122525;run=2;database=ITER;version=3 (summary) ┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ IDS Path ┃ Description ┃ Value first ┃ Value second ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩ │ ids_properties/comment │ different values │ (STR_0D) b2mn B2.5 bjb99/7 │ (STR_0D) b2mn B2.5 bjb99/7 │ │ │ │ SOLPS-ITER 2021-10-14 17:31 bonninx │ SOLPS-ITER 2023-02-23 20:05 bonninx │ │ │ │ ITER#2525_(F57-120-N_1.2%-Be0,_tau=0.… │ ITER#2525_(F57-120-N_1.2%-Be0,_tau=0.2… │ │ ids_properties/source │ missing in second │ (STR_0D) SOLPS4.3 │ │ │ ids_properties/creation_date │ different values │ (STR_0D) 20211014 173342.600 +0200 │ (STR_0D) 20230223 200711.139 +0100 │ │ ids_properties/version_put/data_dictio… │ different values │ (STR_0D) 3.33.0 │ (STR_0D) 3.38.0 │ │ ids_properties/version_put/access_layer │ different values │ (STR_0D) 4.9.2 │ (STR_0D) 4.11.1 │ │ tag/name │ different values │ (STR_0D) 3.0.7 │ (STR_0D) 3.0.8 │ │ configuration/source │ missing in first │ │ (STR_0D) SOLPS4.3 │ │ global_quantities/r0/source │ different values │ (STR_0D) SOLPS4.3 │ (STR_0D) ITER Baseline q95=3 │ │ │ │ │ equilibrium │# Use ids name in the URI using # (hash) parameter $ idsdiff --uri "imas:mdsplus?user=public;pulse=130011;run=6;database=ITER;version=3#summary" "imas:mdsplus?user=public;pulse=130012;run=4;database=ITER;version=3#summary"# compare all available IDSes $ idsdiff --uri "imas:mdsplus?user=public;pulse=131024;run=50;database=ITER;version=3" "imas:mdsplus?user=sawantp1;pulse=131024;run=50;database=ITER;version=3" First: imas:mdsplus?user=public;pulse=131024;run=50;database=ITER;version=3 (equilibrium) - Second: imas:mdsplus?user=sawantp1;pulse=131024;run=50;database=ITER;version=3 (equilibrium) ┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ IDS Path ┃ Description ┃ Value first ┃ Value second ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩ │ ids_properties/version_put/data_dictionary │ different values │ (STR_0D) 3.38.1 │ (STR_0D) 3.42.0 │ │ ids_properties/version_put/access_layer │ different values │ (STR_0D) 4.11.2 │ (STR_0D) 5.3.2 │ │ ids_properties/version_put/access_layer_language │ different values │ (STR_0D) python │ (STR_0D) python-5.3.1+5-ge7f9725 │ └──────────────────────────────────────────────────┴──────────────────┴─────────────────┴──────────────────────────────────┘ IDS availability ┏━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━┓ ┃ IDS ┃ Availability ┃ ┡━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━┩ │ core_sources │ second │ │ distribution_sources │ second │ │ wall │ second │ │ core_profiles │ second │ │ nbi │ second │ │ summary │ second │ │ pf_active │ second │ └──────────────────────┴──────────────┘# compare plot by providing field path $ idsdiff --uri "imas:mdsplus?user=public;pulse=122481;run=1;database=ITER;version=3#edge_profiles/ggd[:]/electrons/density[1].values" "imas:mdsplus?user=public;pulse=122481;run=2;database=ITER;version=3#edge_profiles/ggd[:]/electrons/density[1].values" --plot $ idsdiff --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d(:)/electrons/temperature[10]" "imas:mdsplus?user=public;pulse=134174;run=107;database=ITER;version=3#core_profiles/profiles_1d(:)/electrons/temperature[0]" --plot $ idsdiff --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d(40:60)/electrons/temperature" "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d(40:60)/electrons/temperature" --plot
