idsprint¶

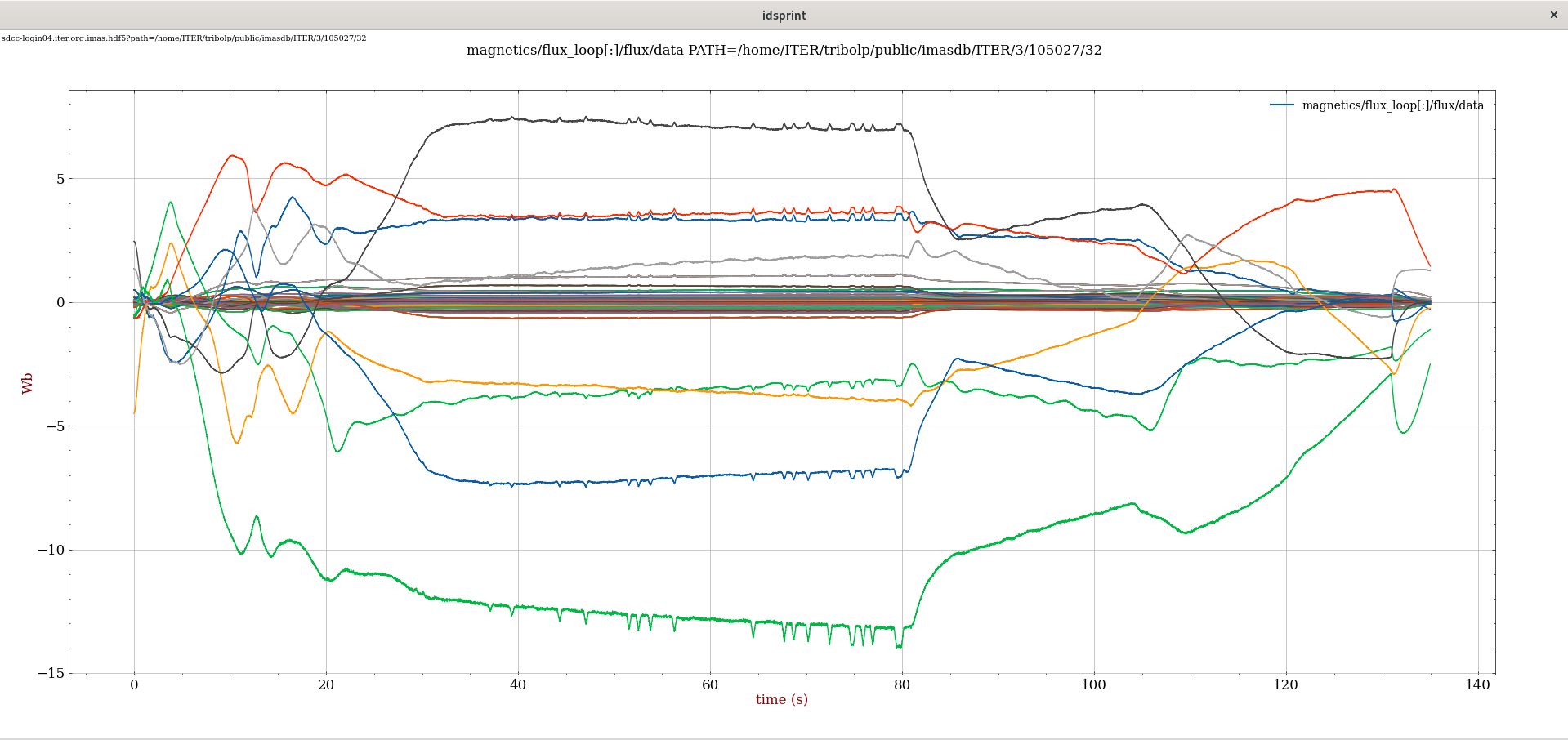

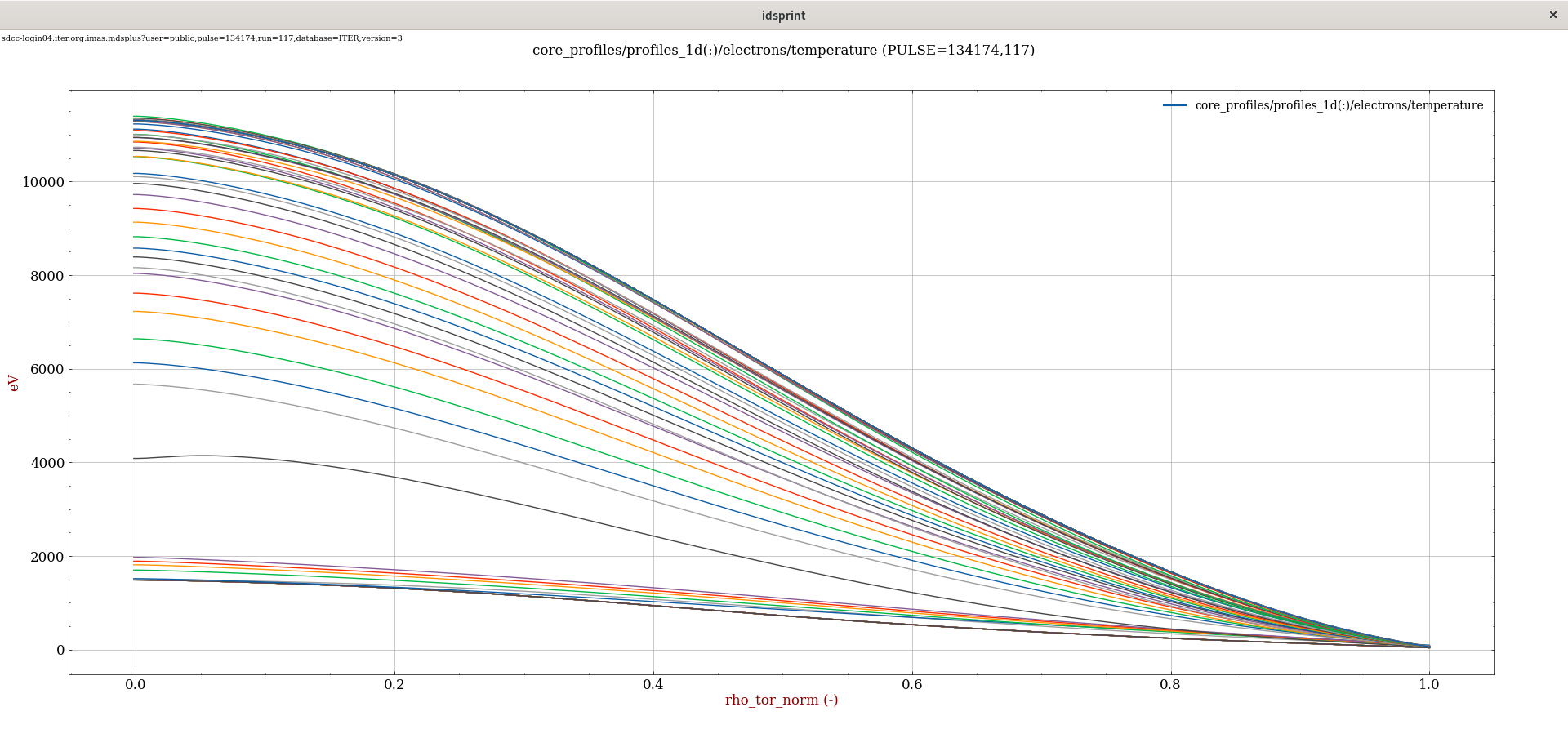

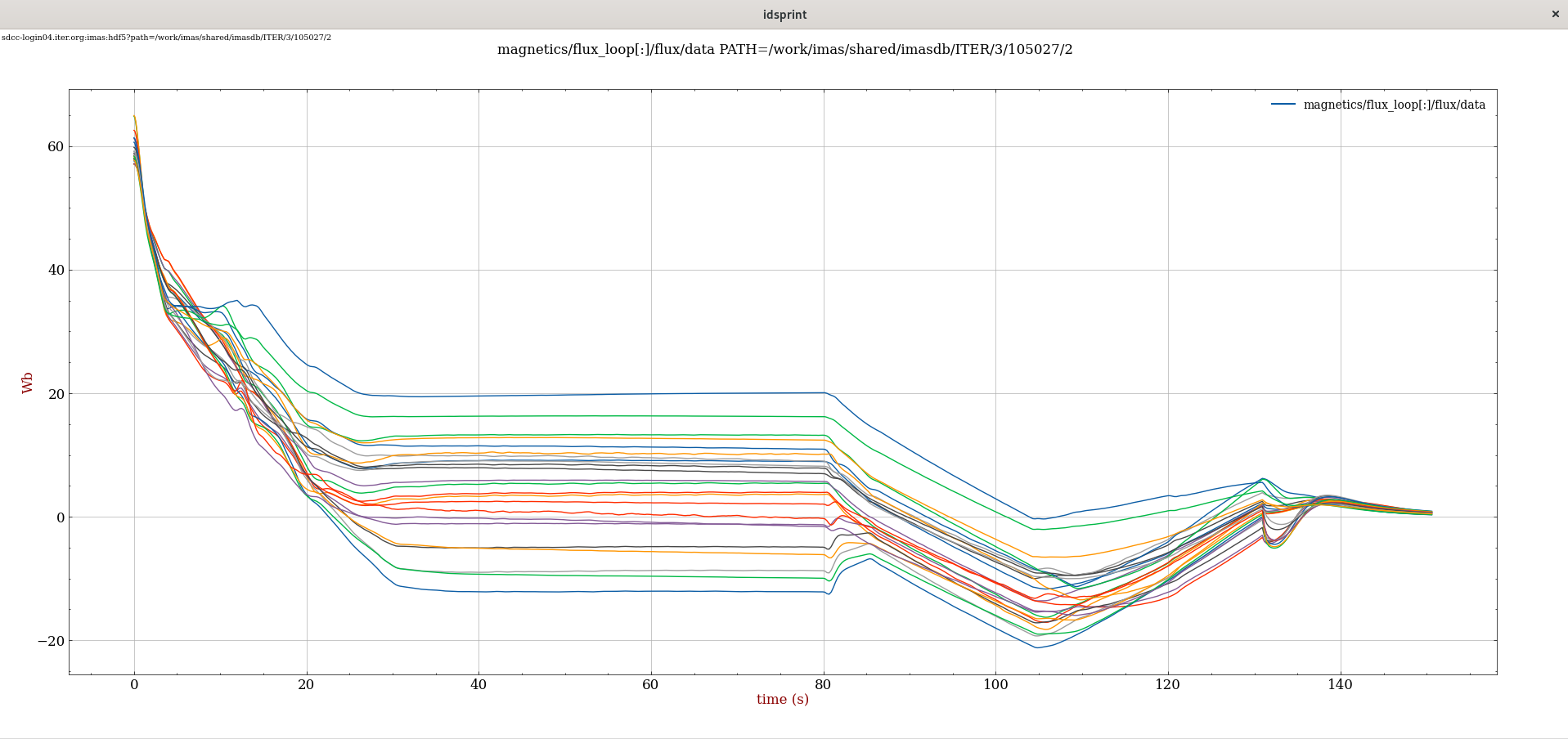

idsprint command prints the content of an IDSes to the terminal. Users can specify a URI to define the data entry path. The command supports various options, allowing users to view empty fields, print all array elements, focus on fields with data, inspect metadata, or plot 1D arrays from the IDS fields. It can also save generated figures to a specified directory or the default location.
Syntax idsprint¶
$ idsprint -h Usage: idsprint [-h] -u URI [--dd-update] [--rc RC] [-e] [-f] [-c] [-d DEPTH] [-i] [-t TIME] [--export] [--export-type EXPORT_TYPE] [-p] [--coordinate COORDINATE] [--save] [--directory DIRECTORY] Prints content of an IDS onto the terminal. The selected IDS is given in the URI #fragment, e.g. e.g. idsprint -u 'imas:mdsplus?user=public;pulse=122525;run=1;database=ITER;version=3#equilibri um' It can also print the content of a field or substructure, by modifying the fragment, e.g. '#equilibrium/time_slice[0]/profiles_2d[0].r'. Options: -h, --help show this help message and exit -u, --uri URI URI of the dataentry (e.g, imas:hdf5?path=./testdb or ./testpulse.nc) --dd-update Convert IDS to the default version of the data dictionary if enabledotherwise, use the original IDS stored on disk. --rc RC Semicolon-separated rcParams string (e.g., 'lines.linewidth=2;axes.titlesize=14') -e, --show-empty Show empty fields of ids -f, --full Print all array elements (can be slow for large data) -c, --compact Print only names which has data -d, --depth DEPTH Maximum depth to traverse when printing tree structure (None for unlimited) -i, --inspect Print child nodes information and metadata -t, --time TIME Time --export export ids data to use in other format --export-type EXPORT_TYPE type of export mat, json -p, --plot plot 1d arrays from leaf nodes --coordinate COORDINATE Provide custom coordinate if required, provide index from coordinates array or ids field --save Save figure at default location --directory DIRECTORY Directory to save the figure
Example idsprint¶
# it is possible to inspect ids field using idsprint $ idsprint --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d" -i ╭───── IDS array of structures: profiles_1d (DD version 3.42.0) ──────╮ │ Core plasma radial profiles for various time slices │ │ ╭─────────────────────────────────────────────────────────────────╮ │ │ │ value = [ │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[0])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[1])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[2])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[3])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[4])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[5])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[6])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[7])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[8])>, │ │ │ │ │ <IDSStructure (IDS:core_profiles, profiles_1d[9])>, │ │ │ │ │ ... +96 │ │ │ │ ] │ │ │ ╰─────────────────────────────────────────────────────────────────╯ │ │ ╭────────────────────────── Attributes ───────────────────────────╮ │ │ │ coordinates = <IDSCoordinates of 'profiles_1d'> │ │ │ │ 0: 'profiles_1d(itime)/time' │ │ │ │ has_value = True │ │ │ │ metadata = <IDSMetadata for 'profiles_1d'> │ │ │ │ shape = (106,) │ │ │ │ size = 106 │ │ │ ╰─────────────────────────────────────────────────────────────────╯ │ ╰─────────────────────────────────────────────────────────────────────╯# view complete tree of ids field using idsprint and check which data is filled $ idsprint --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d[0]" profiles_1d ├── profiles_1d[0]/grid │ ├── rho_tor_norm: array([-0.0017, 0.0017, 0.005 , ..., 0.9933, 0.9966, 1. ]) │ ├── rho_tor: array([-0.0043, 0.0043, 0.013 , ..., 2.5667, 2.5753, 2.584 ]) │ ├── psi: array([ 1.7381e+01, 1.7381e+01, 1.7381e+01, ..., 1.1796e-01, 5.8720e-02, -2.7637e-08]) │ ├── volume: array([-4.6259e-03, 4.6259e-03, 2.3129e-02, ..., 7.3460e+02, 7.3898e+02, 7.4335e+02]) │ └── area: array([5.9593e-05, 5.9593e-05, 5.3633e-04, ..., 1.9476e+01, 1.9603e+01, 1.9730e+01]) ├── profiles_1d[0]/electrons │ ├── temperature: array([1490.9207, 1490.9207, 1489.9044, ..., 49.4664, 45.7809, 41.9821]) │ ├── density: array([5.3978e+18, 5.3978e+18, 5.3984e+18, ..., 2.3647e+18, 2.2721e+18, 2.1800e+18]) │ ├── density_thermal: array([5.3978e+18, 5.3978e+18, 5.3984e+18, ..., 2.3647e+18, 2.2721e+18, 2.1800e+18]) │ ├── pressure_thermal: array([1289.3981, 1289.3981, 1288.6679, ..., 18.7413, 16.6655, 14.6638]) │ └── collisionality_norm: array([1105.0601, 1105.0601, 123.0365, ..., 32.9046, 36.9473, 40.9901]) ├── profiles_1d[0]/ion[0] │ ├── profiles_1d[0]/ion[0]/element[0] │ │ ├── a: 2.0 │ │ ├── z_n: 1.0 │ │ └── atoms_n: 1 │ ├── z_ion: 1.0 │ ├── label: 'D' │ ├── name: 'D' │ ├── neutral_index: 1 │ ├── z_ion_1d: array([1., 1., 1., ..., 1., 1., 1.]) │ ├── z_ion_square_1d: array([1., 1., 1., ..., 1., 1., 1.]) │ ├── temperature: array([891.8207, 891.8207, 891.4358, ..., 72.0662, 70.2118, 68.3453]) │ ├── density: array([2.5504e+18, 2.5504e+18, 2.5507e+18, ..., 1.1550e+18, 1.1094e+18, 1.0640e+18]) │ ├── density_thermal: array([2.5504e+18, 2.5504e+18, 2.5507e+18, ..., 1.1550e+18, 1.1094e+18, 1.0640e+18]) │ ├── pressure_thermal: array([364.4206, 364.4206, 364.3042, ..., 13.3359, 12.4804, 11.6511]) │ ├── velocity_tor: array([ -0. , -92.2832, -92.2583, ..., -74.3607, -74.7488, -75.1539]) │ ├── velocity_pol: array([ 0. , 1.8106, 9.8227, ..., 58.2206, 57.0282, 57.0282]) │ ├── profiles_1d[0]/ion[0]/velocity │ │ ├── poloidal: array([ 0. , 1.8106, 9.8227, ..., 58.2206, 57.0282, 57.0282]) │ │ └── toroidal: array([ -0. , -92.2832, -92.2583, ..., -74.3607, -74.7488, -75.1539]) │ ├── multiple_states_flag: 1 │ └── profiles_1d[0]/ion[0]/state[0] │ └── density_thermal: array([2.5504e+18, 2.5504e+18, 2.5507e+18, ..., 1.1550e+18, 1.1094e+18, 1.0640e+18]) . ├── t_i_average: array([891.8207, 891.8207, 891.4358, ..., 72.0662, 70.2118, 68.3453]) ├── n_i_thermal_total: array([5.1768e+18, 5.1768e+18, 5.1774e+18, ..., 2.3258e+18, 2.2342e+18, 2.1431e+18]) ├── momentum_tor: array([-0.0000e+00, -1.2881e-05, -1.2879e-05, ..., -5.0121e-06, -4.8439e-06, -4.6759e-06]) ├── momentum_phi: array([-0.0000e+00, -1.2881e-05, -1.2879e-05, ..., -5.0121e-06, -4.8439e-06, -4.6759e-06]) ├── zeff: array([1.1637, 1.1637, 1.1637, ..., 1.061 , 1.0616, 1.0619]) ├── pressure_ion_total: array([739.7033, 739.7048, 739.4746, ..., 26.8543, 25.1331, 23.4676]) ├── pressure_thermal: array([2029.1014, 2029.1014, 2028.141 , ..., 45.5955, 41.7986, 38.1314]) ├── j_total: array([-391858.8422, -391858.8422, -391057.4083, ..., -15607.9471, -13951.2367, -12294.5263]) ├── j_tor: array([-388437.6394, -388437.6394, -388149.7462, ..., -13766.4592, -12280.6587, -11566.4002]) ├── j_phi: array([-388437.6394, -388437.6394, -388149.7462, ..., -13766.4592, -12280.6587, -11566.4002]) ├── j_ohmic: array([-388432.3669, -388432.3669, -388124.089 , ..., -13740.2629, -12259.6731, -11550.1127]) ├── j_non_inductive: array([ -5.2725, -5.2725, -25.6572, ..., -26.1963, -20.9856, -16.2875]) ├── j_bootstrap: array([ -2.2622, -2.2622, -21.0684, ..., -26.1959, -20.9853, -16.2872]) ├── conductivity_parallel: array([56856983.6228, 56856983.6228, 56807225.7344, ..., 362621.2542, 323078.8177, 291312.3407]) ├── profiles_1d[0]/e_field │ ├── radial: array([ -128.0971, -128.0971, -123.9098, ..., -1571.4791, -1565.848 , -1560.2169]) │ └── parallel: array([-0.0069, -0.0069, -0.0069, ..., -0.0428, -0.0429, -0.043 ]) ├── q: array([ 3.6316, 3.6316, 3.6317, ..., 12.4764, 12.6303, 12.7837]) └── magnetic_shear: array([1.5337e-06, 1.5337e-06, 9.4825e-04, ..., 3.6307e+00, 3.6068e+00, 3.5829e+00])# view complete tree without data using idsprint to get an overview $ idsprint --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d[0]" -c 14:17:09 INFO Parsing data dictionary version 3.42.0 @dd_zip.py:166 14:17:09 INFO Parsing data dictionary version 3.31.0 @dd_zip.py:166 profiles_1d ├── profiles_1d[0]/grid │ ├── rho_tor_norm │ ├── rho_tor │ ├── psi │ ├── volume │ └── area ├── profiles_1d[0]/electrons │ ├── temperature │ ├── density │ ├── density_thermal │ ├── pressure_thermal │ └── collisionality_norm ├── profiles_1d[0]/ion[0] │ ├── profiles_1d[0]/ion[0]/element[0] │ │ ├── a │ │ ├── z_n │ │ └── atoms_n │ ├── z_ion │ ├── label │ ├── name │ ├── neutral_index# -f option of idsprint will allow to print full numpy arrays to check values in depth $ idsprint --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d[0]" -f# -e option of idsprint will show unfilled ids fields along wirh filled ones $ idsprint --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d[0]/e_field" -e 14:24:58 INFO Parsing data dictionary version 3.42.0 @dd_zip.py:166 14:24:59 INFO Parsing data dictionary version 3.31.0 @dd_zip.py:166 e_field ├── radial: array([ -128.0971, -128.0971, -123.9098, ..., -1571.4791, -1565.848 , -1560.2169]) ├── radial_error_upper ├── radial_error_lower ├── radial_error_index ├── diamagnetic ├── diamagnetic_error_upper ├── diamagnetic_error_lower ├── diamagnetic_error_index ├── parallel: array([-0.0069, -0.0069, -0.0069, ..., -0.0428, -0.0429, -0.043 ]) ├── parallel_error_upper ├── parallel_error_lower ├── parallel_error_index ├── poloidal ├── poloidal_error_upper ├── poloidal_error_lower ├── poloidal_error_index ├── toroidal ├── toroidal_error_upper ├── toroidal_error_lower └── toroidal_error_index# Plot ids field using idsprint $ idsprint --uri "imas:hdf5?path=/work/imas/shared/imasdb/ITER/3/105027/2#magnetics/flux_loop[:]/flux/data" -p $ idsprint --uri "imas:mdsplus?user=public;pulse=122481;run=1;database=ITER;version=3#edge_profiles/ggd[:]/electrons/density[1].values" -p $ idsprint --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3#core_profiles/profiles_1d(:)/electrons/temperature" -p
