plotcoresources¶

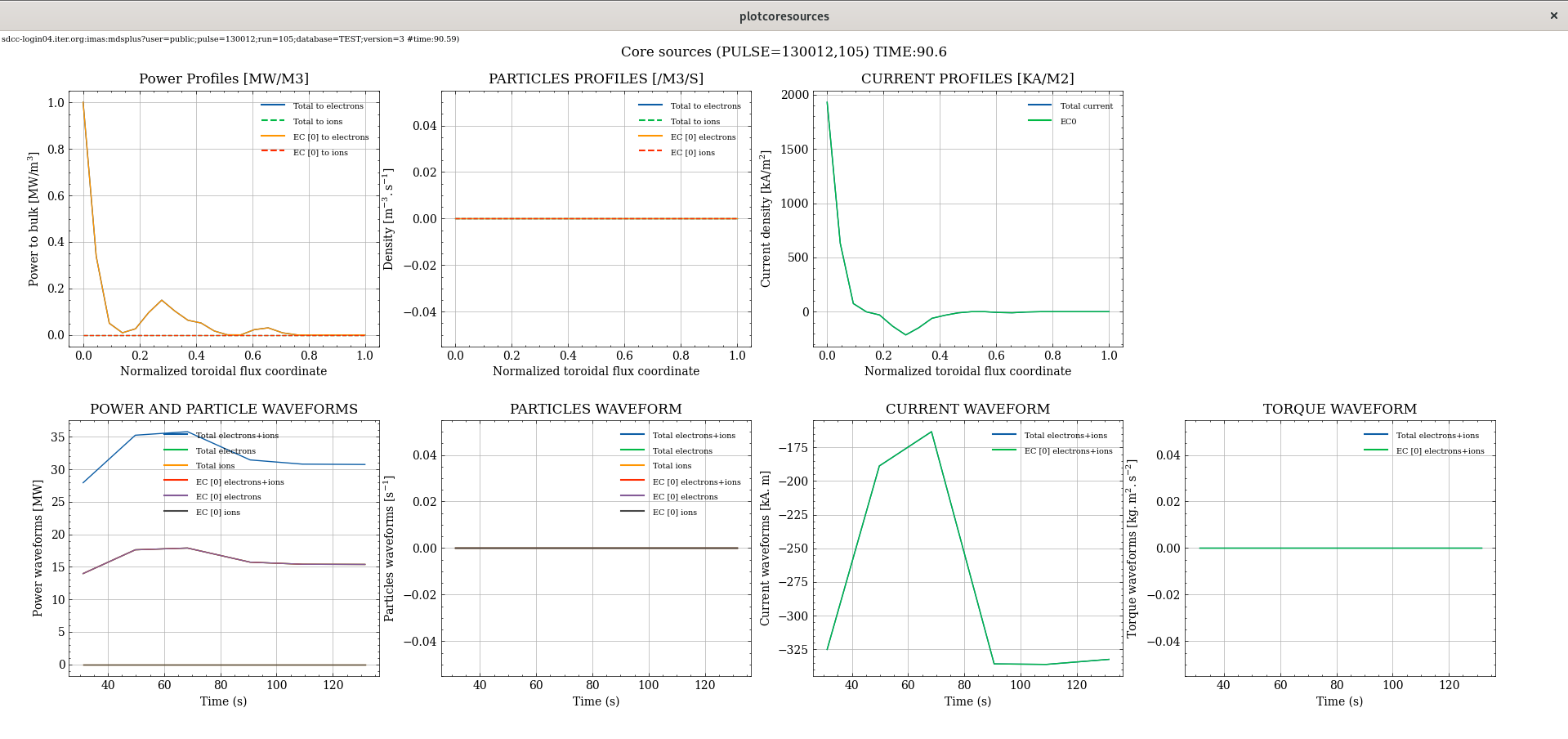

plotcoresources plot core sources results.It plots Current, Torque and Particles waveform along with Power, particle and current profiles. refer data dictionary.

Syntax plotcoresources¶

$ plotcoresources -h
Usage: plotcoresources [-h] -u URI [--dd-update] [--rc RC] [-t TIME] [--save]
                       [--directory DIRECTORY]

---- Display core_sources results [Previously known as csplot]

Options:
  -h, --help            show this help message and exit
  -u, --uri URI         URI of the dataentry (e.g, imas:hdf5?path=./testdb or
                        ./testpulse.nc)
  --dd-update           Convert IDS to the default version of the data
                        dictionary if enabledotherwise, use the original IDS
                        stored on disk.
  --rc RC               Semicolon-separated rcParams string (e.g.,
                        'lines.linewidth=2;axes.titlesize=14')
  -t, --time TIME       time
  --save                Save figure at default location
  --directory DIRECTORY
                        Directory to save the figure

Example plotcoresources¶

$ plotcoresources --uri "imas:mdsplus?user=public;pulse=130012;run=105;database=TEST;version=3"
Time  = 190.82 s in range [31.20,328.18] s
Index = 8
Averaged resolution = 19.79856 s
Core_sources contains 1 source
