ploteccomposition¶

ploteccomposition shows EC composition (ECRH and ECCD profiles)

Syntax ploteccomposition¶

$ ploteccomposition -h
Usage: ploteccomposition [-h] -u URI [--dd-update] [--rc RC] [-t TIME]
                         [-f FORCE_PSI] [--verbose] [--save]
                         [--directory DIRECTORY]

---- Display EC results

Options:
  -h, --help            show this help message and exit
  -u, --uri URI         URI of the dataentry (e.g, imas:hdf5?path=./testdb or
                        ./testpulse.nc)
  --dd-update           Convert IDS to the default version of the data
                        dictionary if enabledotherwise, use the original IDS
                        stored on disk.
  --rc RC               Semicolon-separated rcParams string (e.g.,
                        'lines.linewidth=2;axes.titlesize=14')
  -t, --time TIME       Time for which profiles are displayed
  -f, --force_psi FORCE_PSI
                        = 1 to force displaying the profiles versus poloidal
                        flux
  --verbose             = 1 to display numerical analysis of gaussian profiles
  --save                Save figure at default location
  --directory DIRECTORY
                        Directory to save the figure

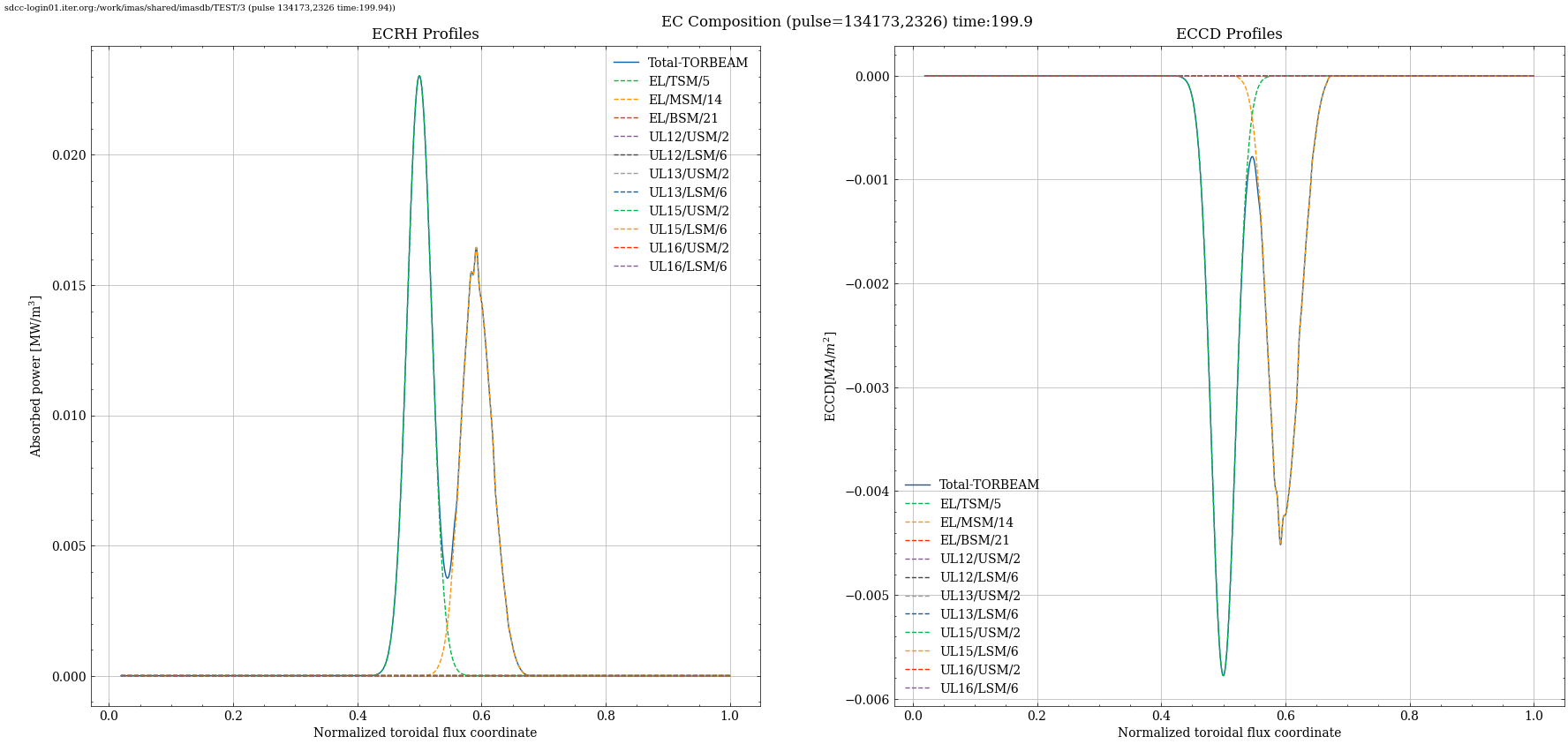

Example ploteccomposition¶

$ ploteccomposition --uri "imas:mdsplus?user=public;pulse=134173;run=2326;database=TEST;version=3"
