plotrotation¶

plotrotation Display the plasma kinetic profiles from the core_profiles IDSs. refer data dictionary.

Syntax plotrotation¶

$ plotrotation -h
Usage: plotrotation [-h] -u URI [--dd-update] [--rc RC] [-t TIME] [--save]
                    [--directory DIRECTORY]

---- Display the efield, toroidal, polidal velocities from the core_profiles
IDSs

Options:
  -h, --help            show this help message and exit
  -u, --uri URI         URI of the dataentry (e.g, imas:hdf5?path=./testdb or
                        ./testpulse.nc)
  --dd-update           Convert IDS to the default version of the data
                        dictionary if enabledotherwise, use the original IDS
                        stored on disk.
  --rc RC               Semicolon-separated rcParams string (e.g.,
                        'lines.linewidth=2;axes.titlesize=14')
  -t, --time TIME       Time
  --save                Save figure at default location
  --directory DIRECTORY
                        Directory to save the figure

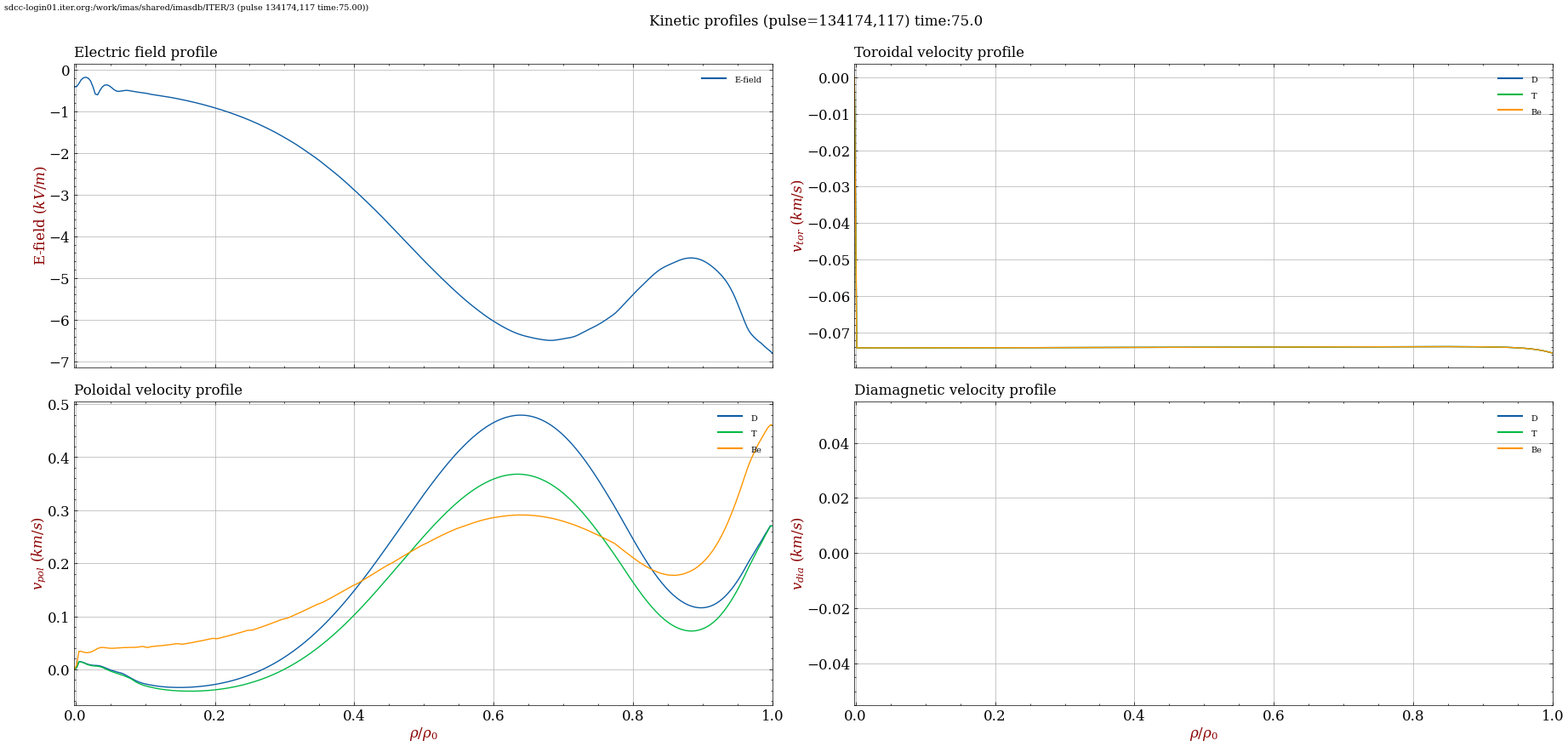

Example¶

$ plotrotation --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3"
Time  = 75.00 s in range [10.60,75.00] s
Index = 105
Averaged resolution = 0.6133411929278538 s
core_profiles.profiles_1d[0].ion[0].velocity.diamagnetic could not be read
core_profiles.profiles_1d[0].ion[1].velocity.diamagnetic could not be read
core_profiles.profiles_1d[0].ion[2].velocity.diamagnetic could not be read
