plothcddistributions¶

plothcddistributions shows waveforms

Syntax plothcddistributions¶

$ plothcddistributions -h
Usage: plothcddistributions [-h] -u URI [--dd-update] [--rc RC] [-t TIME]
                            [--save] [--directory DIRECTORY]

---- Display EC results

Options:
  -h, --help            show this help message and exit
  -u, --uri URI         URI of the dataentry (e.g, imas:hdf5?path=./testdb or
                        ./testpulse.nc)
  --dd-update           Convert IDS to the default version of the data
                        dictionary if enabledotherwise, use the original IDS
                        stored on disk.
  --rc RC               Semicolon-separated rcParams string (e.g.,
                        'lines.linewidth=2;axes.titlesize=14')
  -t, --time TIME       Time
  --save                Save figure at default location
  --directory DIRECTORY
                        Directory to save the figure

Example plothcddistributions¶

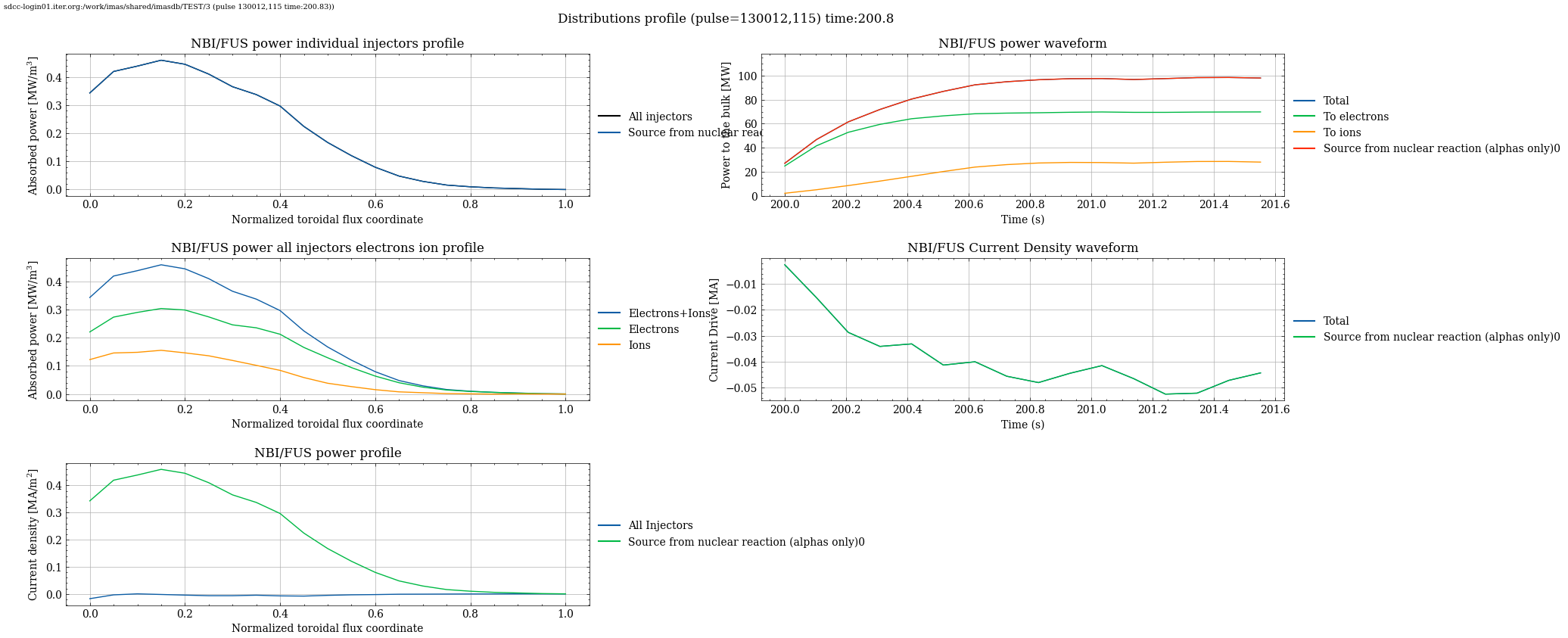

$ plothcddistributions --uri "imas:mdsplus?user=public;pulse=130012;run=115;database=TEST;version=3"

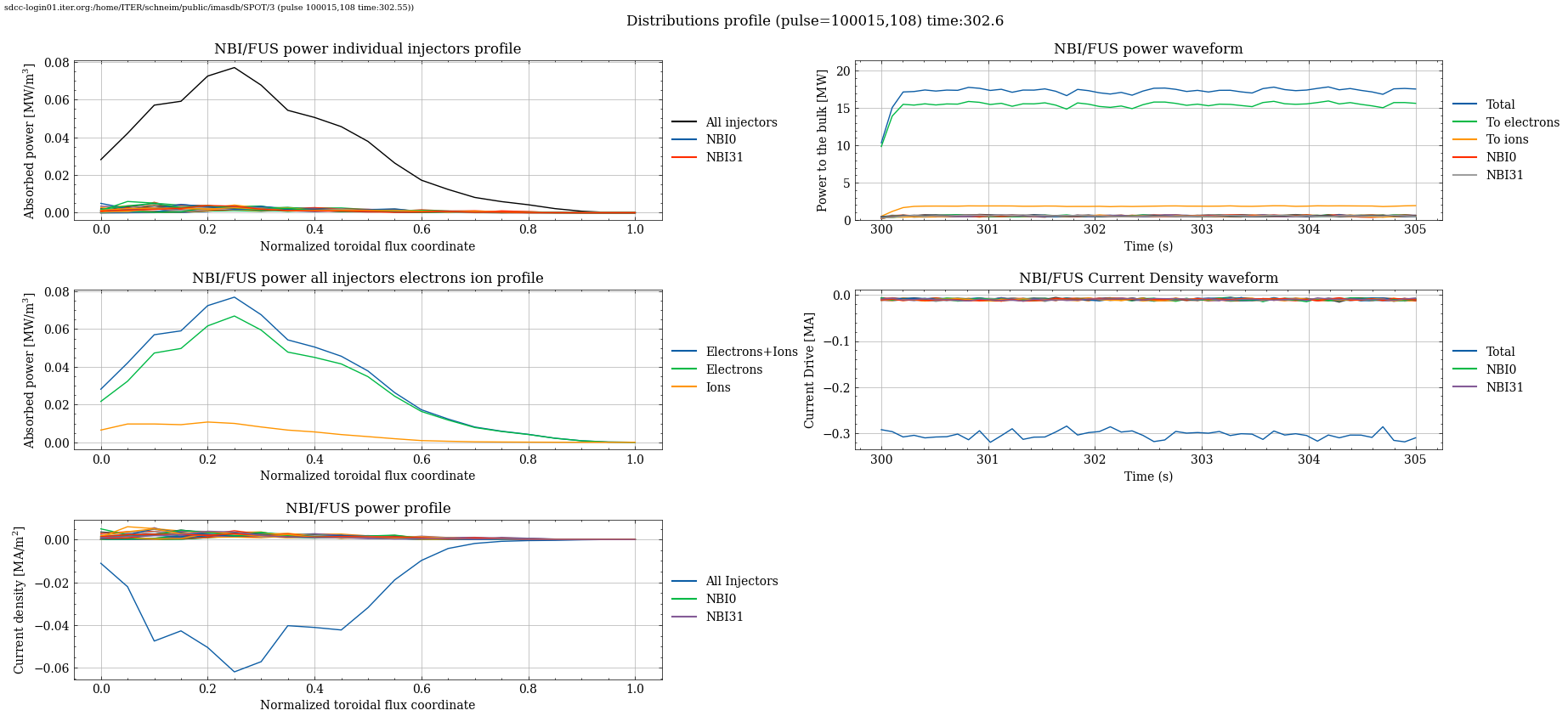

$ plothcddistributions --uri "imas:mdsplus?user=schneim;pulse=100015;run=108;database=SPOT;version=3"
