plotscenario¶

plotscenario Display the plasma kinetic profiles and equilibrium from the core_profiles and equilibrium IDSs. refer data dictionary.

Syntax plotscenario¶

$ plotscenario -h
Usage: plotscenario [-h] -u URI [--dd-update] [--rc RC] [-t TIME | -n] [-i]
                    [--save] [--directory DIRECTORY]

---- Display the plasma kinetic profiles and equilibrium from the
core_profiles and equilibrium IDSs

Options:
  -h, --help            show this help message and exit
  -u, --uri URI         URI of the dataentry (e.g, imas:hdf5?path=./testdb or
                        ./testpulse.nc)
  --dd-update           Convert IDS to the default version of the data
                        dictionary if enabledotherwise, use the original IDS
                        stored on disk.
  --rc RC               Semicolon-separated rcParams string (e.g.,
                        'lines.linewidth=2;axes.titlesize=14')
  -t, --time TIME       Time for profiles
  -n, --no-profiles     Do not plot profiles or equilibrium
  -i, --info            Add title with additional provenance information
  --save                Save figure at default location
  --directory DIRECTORY
                        Directory to save the figure

Example¶

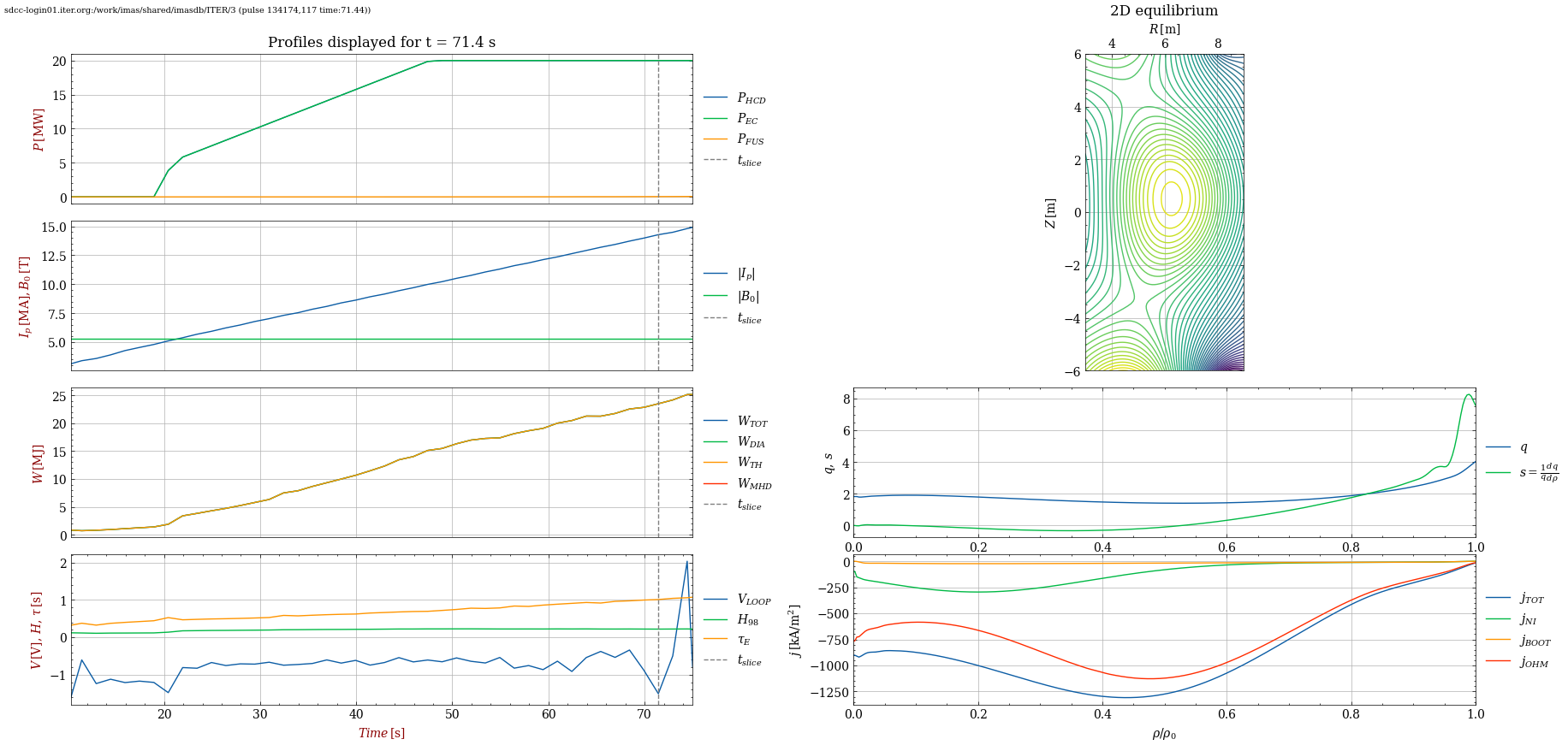

$ plotscenario --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3"
Time  = 71.44 s in range [10.60,75.00] s
Index = 53
Averaged resolution = 0.6133411929278538 s
summary.global_quantities.energy_mhd.value could not be read
HMode is not present
HMode is not present
HMode is not present
HMode is not present
