plotpressure¶

plotpressure Display the plasma kinetic profiles from the core_profiles IDSs, It shows ion and electrons pressure properties from core_profiles. refer data dictionary.

Syntax plotpressure¶

$ plotpressure -h
Usage: plotpressure [-h] -u URI [--dd-update] [--rc RC] [-t TIME] [--save]
                    [--directory DIRECTORY]

Display the plasma pressure properties from the core_profiles IDS

Options:
  -h, --help            show this help message and exit
  -u, --uri URI         URI of the dataentry (e.g, imas:hdf5?path=./testdb or
                        ./testpulse.nc)
  --dd-update           Convert IDS to the default version of the data
                        dictionary if enabledotherwise, use the original IDS
                        stored on disk.
  --rc RC               Semicolon-separated rcParams string (e.g.,
                        'lines.linewidth=2;axes.titlesize=14')
  -t, --time TIME       Time
  --save                Save figure at default location
  --directory DIRECTORY
                        Directory to save the figure

Example¶

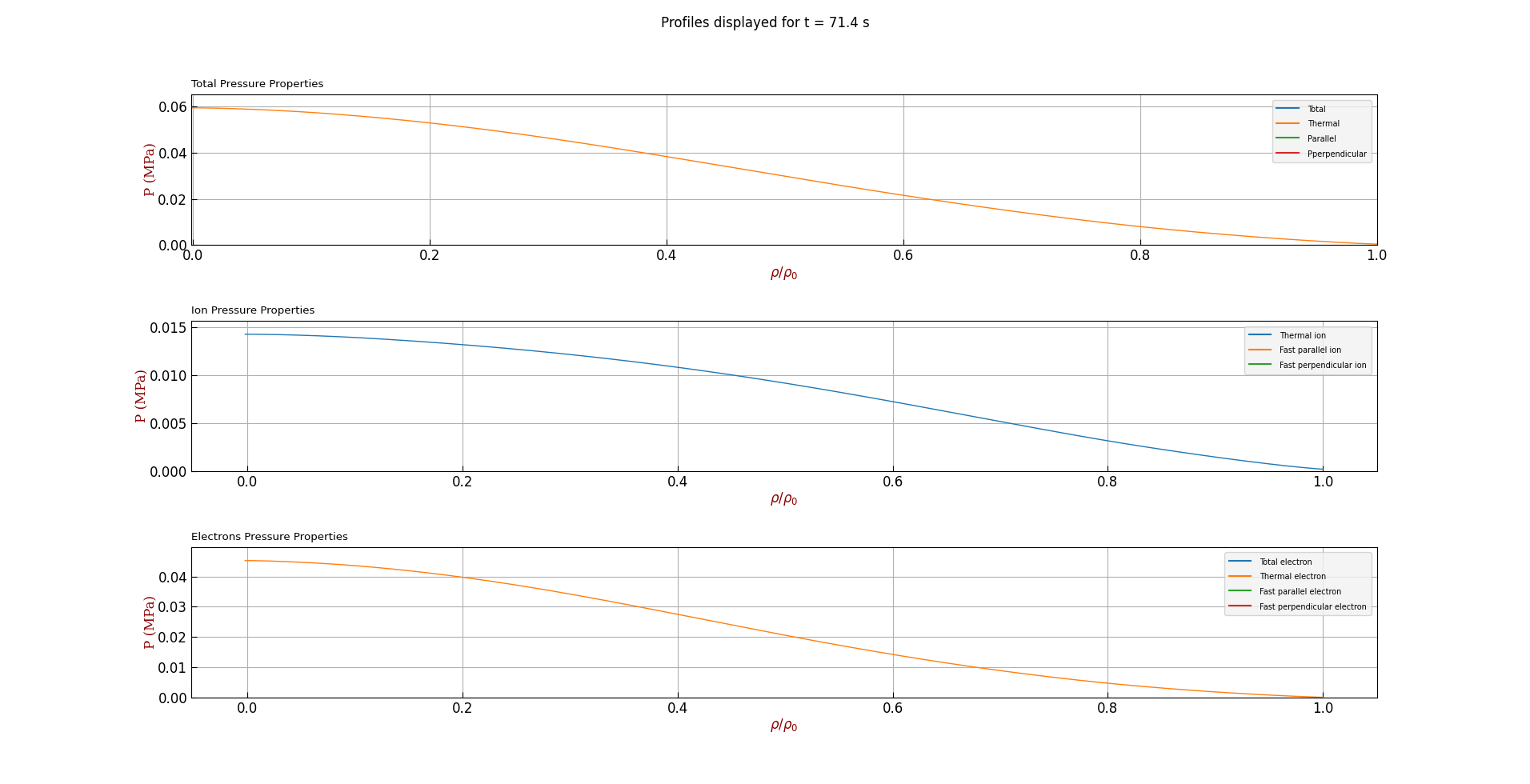

$ plotpressure --uri "imas:mdsplus?user=public;pulse=134174;run=117;database=ITER;version=3"
Time  = 71.44 s in range [10.60,75.00] s
Index = 53
Averaged resolution = 0.6133411929278538 s
Empty profiles_1d[0].pressure_fast_parallel
Empty profiles_1d[0].pressure_fast_perpendicular
Empty profiles_1d[0].electrons.pressure
Empty profiles_1d[0].electrons.pressure_fast_parallel
Empty profiles_1d[0].electrons.pressure_fast_perpendicular
Total volume:83036.75126289157
Empty profiles_1d[0].ion.pressure_fast_parallel
Empty profiles_1d[0].ion.pressure_fast_perpendicular
Empty profiles_1d[0].electrons.pressure
Empty profiles_1d[0].electrons.pressure_fast_parallel
Empty profiles_1d[0].electrons.pressure_fast_perpendicular
